| Crane Model | HLRM 170-4S | ||
|---|---|---|---|
| Hydraulic Requirements | Supplied with Brimmond rental HPU | ||

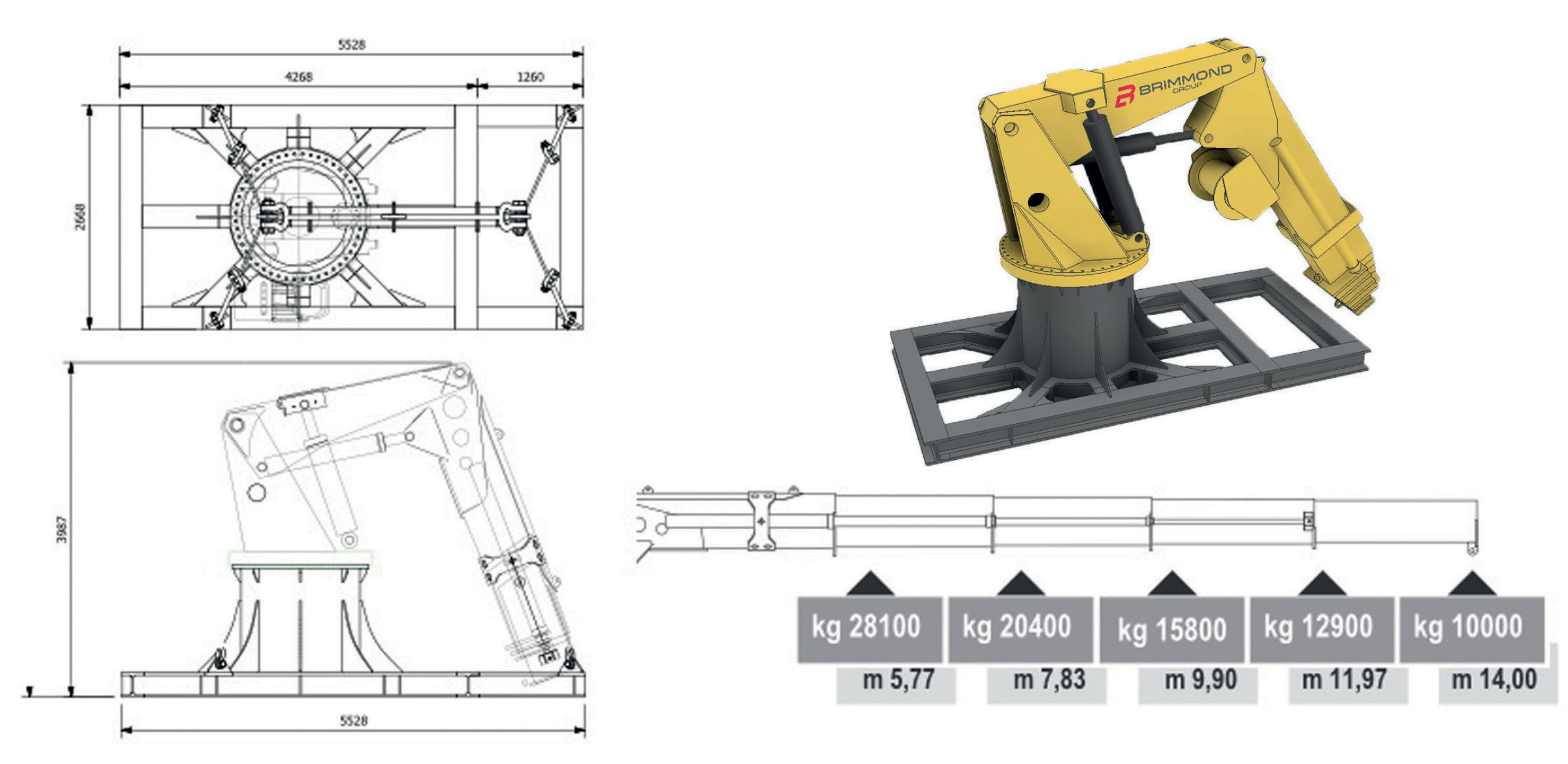

| Lifting Capacity | From 28,100kg @ 5.77m to 10,000kg @ 14.00m (on boom tip hook) | ||
| Number of Extension Sections | 4 hydraulic extensions | ||
| Slewing Arrangement | Slew bearing, unlimited slewing | ||
| Winch Type | Dynamic Oil | ||
| Winch Capacity | 5 Tonne winch with double reeve black to 10 Tonne (other sizes available on request) | ||
| Winch Rope | To suit application | ||
| Controls | Seated control station and remote control | ||
| Safety Features | Load moment limit | ||
| Dimensions | 5528mm (L) x 2688mm (W) x 3987mm (H) - on skid base | ||
| Weight | 18,400kg (on skid base including spreader bar) | ||
| Mounting | Direct mount or supplied with skid base |
- Home
- Rental Equipment
- Marine Cranes and Lifting Equipment
- Heila HLRM170 4S Marine Crane
Heila HLRM170 4S Marine Crane
