| No of Ext | 1st Ext | 2nd Ext | 3rd Ext | 4th Ext | 5th Ext | 6th Ext | ||
|---|---|---|---|---|---|---|---|---|

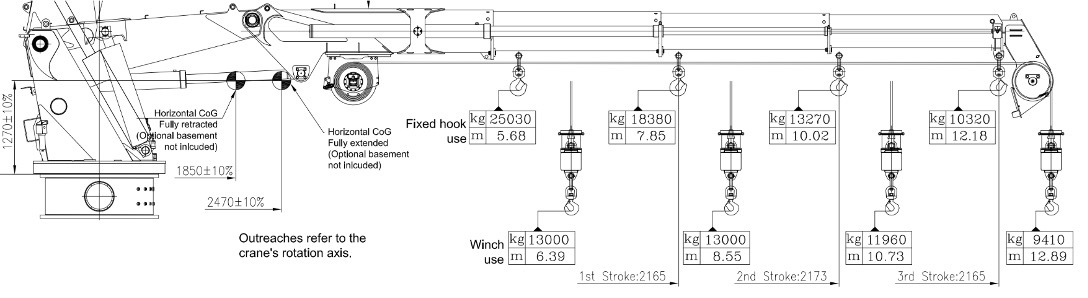

| 3S | Radius (M) | 5.68 | 7.85 | 10.02 | 12.18 | |||
| SWL (Kg) | 25,030 | 18,380 | 13,270 | 10,320 | ||||

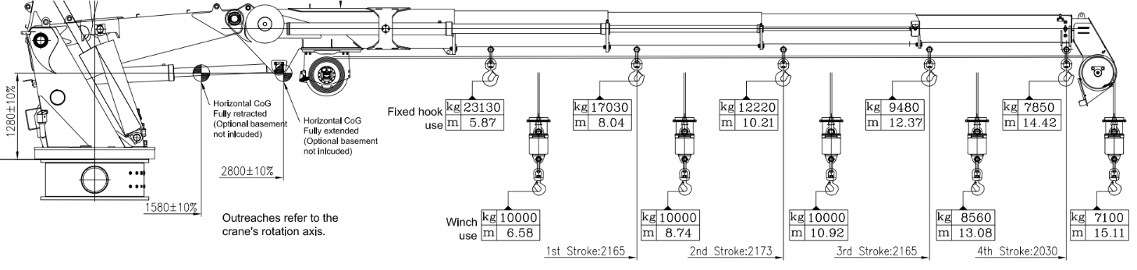

| 4S | Radius (M) | 5.87 | 8.04 | 10.21 | 12.37 | 14.42 | ||
| SWL (Kg) | 23,130 | 17,030 | 12,220 | 9,480 | 7,850 | |||

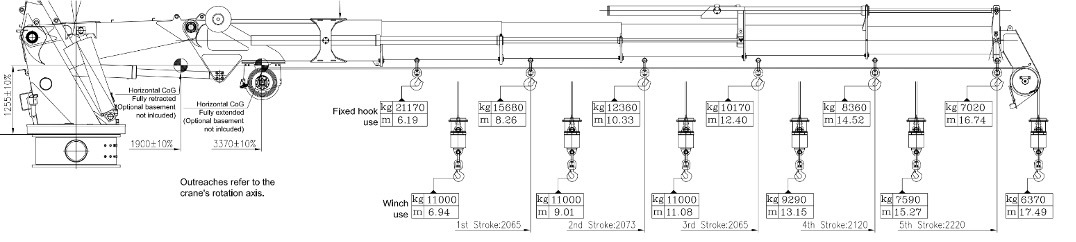

| 5s | Radius (M) | 6.19 | 8.26 | 10.33 | 12.4 | 14.52 | 16.74 | |
| SWL (Kg) | 21,170 | 15,680 | 12,360 | 10,170 | 8,360 | 7,020 | ||

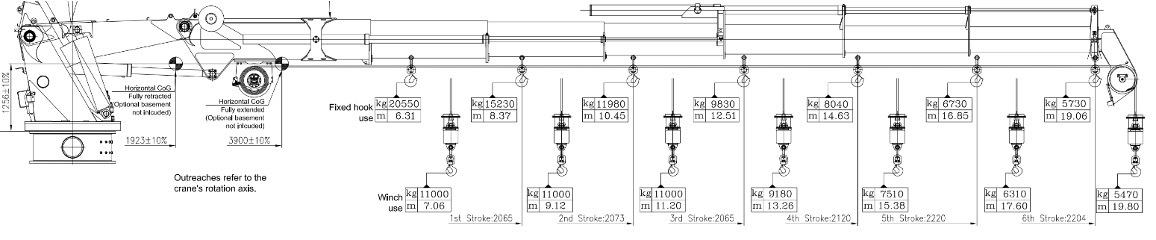

| 6S | Radius (M) | 6.31 | 8.37 | 10.45 | 12.51 | 14.63 | 16.85 | 19.06 |
| SWL (Kg) | 20,550 | 15,230 | 11,980 | 9,830 | 8,040 | 6,730 | 5,730 |
- Home
- Marine Cranes
- Foldable Knuckle Boom Cranes
- Heila HLRM 140 Marine Crane
Heila HLRM 140 Marine Crane
Enquire about this product
Complete the below form, and we will get back to you as soon as possible
-
-
Max dynamic overturning moment 2058 kNm Max dynamic vertical force 423 kN Max slewing torque 209 kNm Mass weight * 9700 kg Slewing angle 360° unilimited Slewing speed (107 L/min) 1 rpm Max oil pressure 290 bar Standard winch (5 t) 400 kg Standard rope d-lenght 18/60 mm/m Hoisting speed (2° layer - 100 L/min) 37(D)-30(T) m/min Standard winch (8 t) 700 kg Standard rope d-lenght 22/70 mm/m Hoisting speed (2° layer) - (100 L/min) 20 m/min Suggested min oil flow 120 L/min Oil tank recommended capacity 400 L Suggested HPU for the above winches 55 kW Standard winch (11 t) 900 kg Standard rope d-lenght 24/70 mm/min Hoisting speed (2° layer - 120 L/min) 19 m/min Suggested oil flow 160 L/min Oil tank recommended capacity 600 L Suggested HPU for 11 T winch 75 kW 1st boom extension time - (115 L/min) 51 sec 2nd boom extension time - (115 L/min) 49 sec Telescopic extension time - (115/150 L/min) 94/72 sec * Tolerance +/- 5%; basement and winch not included -
Max dynamic overturning moment 1990 kNm Max dynamic vertical force 403 kN Max slewing torque 203 kNm Mass weight * 9800 kg Slewing angle 360° unilimited Slewing speed (107 L/min) 1 rpm Max oil pressure 290 bar Standard winch (5 t) 400 kg Standard rope d-lenght 18/60 mm/m Hoisting speed (2° layer - 100 L/min) 37(D)-30(T) m/min Standard winch (8 t) 700 kg Standard rope d-lenght 22/70 mm/m Hoisting speed (2° layer) - (100 L/min) 20 m/min Suggested min oil flow 120 L/min Oil tank recommended capacity 400 L Suggested HPU for the above winches 55 kW Standard winch (11 t) 900 kg Standard rope d-lenght 24/70 mm/min Hoisting speed (2° layer - 120 L/min) 19 m/min Suggested oil flow 160 L/min Oil tank recommended capacity 600 L Suggested HPU for 11 T winch 75 kW 1st boom extension time - (115 L/min) 51 sec 2nd boom extension time - (115 L/min) 49 sec Telescopic extension time - (115/150 L/min) 103/79 sec * Tolerance +/- 5%; basement and winch not included -
Max dynamic overturning moment 2017 kNm Max dynamic vertical force 391 kN Max slewing torque 235 kNm Mass weight * 11000 kg Slewing angle 360° unilimited Slewing speed (107 L/min) 1 rpm Max oil pressure 290 bar Standard winch (5 t) 400 kg Standard rope d-lenght 18/60 mm/m Hoisting speed (2° layer - 100 L/min) 37(D)-30(T) m/min Standard winch (8 t) 700 kg Standard rope d-lenght 22/70 mm/m Hoisting speed (2° layer) - (100 L/min) 20 m/min Suggested min oil flow 120 L/min Oil tank recommended capacity 400 L Suggested HPU for the above winches 55 kW Standard winch (11 t) 900 kg Standard rope d-lenght 24/70 mm/min Hoisting speed (2° layer - 120 L/min) 19 m/min Suggested oil flow 160 L/min Oil tank recommended capacity 600 L Suggested HPU for 11 T winch 75 kW 1st boom extension time - (115 L/min) 51 sec 2nd boom extension time - (115 L/min) 49 sec Telescopic extension time - (115/150 L/min) 122/93 sec * Tolerance +/- 5%; basement and winch not included -
Max dynamic overturning moment 2038 kNm Max dynamic vertical force 387 kN Max slewing torque 243 kNm Mass weight * 11500 kg Slewing angle 360° unilimited Slewing speed (107 L/min) 1 rpm Max oil pressure 290 bar Standard winch (5 t) 400 kg Standard rope d-lenght 18/60 mm/m Hoisting speed (2° layer - 100 L/min) 37(D)-30(T) m/min Standard winch (8 t) 700 kg Standard rope d-lenght 22/70 mm/m Hoisting speed (2° layer) - (100 L/min) 20 m/min Suggested min oil flow 120 L/min Oil tank recommended capacity 400 L Suggested HPU for the above winches 55 kW Standard winch (11 t) 900 kg Standard rope d-lenght 24/70 mm/min Hoisting speed (2° layer - 120 L/min) 19 m/min Suggested oil flow 160 L/min Oil tank recommended capacity 600 L Suggested HPU for 11 T winch 75 kW 1st boom extension time - (115 L/min) 51 sec 2nd boom extension time - (115 L/min) 49 sec Telescopic extension time - (115/150 L/min) 146/112 sec * Tolerance +/- 5%; basement and winch not included
