| No of Ext | 1st Ext | 2nd Ext | 3rd Ext | 4th Ext | 5th Ext | 6th Ext | ||
|---|---|---|---|---|---|---|---|---|
| 3S | Radius (M) | 4.72 | 6.62 | 8.62 | 10.62 | |||
| SWL (Kg) | 17,910 | 12,990 | 9,720 | 7,330 | ||||
| 4S | Radius (M) | 4.82 | 6.72 | 8.72 | 10.72 | 12.72 | ||
| SWL (Kg) | 17,390 | 12,550 | 9,370 | 7,000 | 5,620 | |||

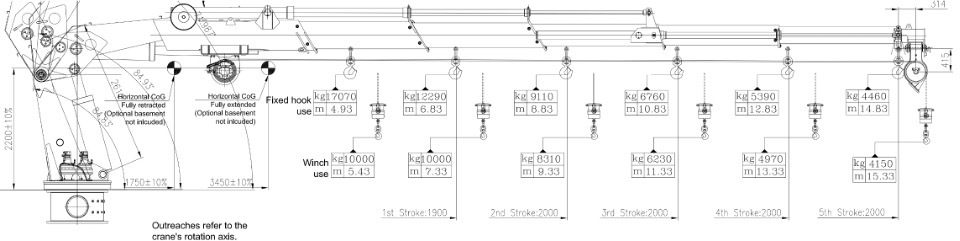

| 5s | Radius (M) | 4.93 | 6.83 | 8.83 | 10.83 | 12.83 | 14.83 | |
| SWL (Kg) | 17,070 | 12,290 | 9,110 | 6,760 | 5,390 | 4,460 | ||
| 6S | Radius (M) | 5.02 | 6.92 | 8.92 | 10.92 | 12.92 | 14.92 | 16.92 |
| SWL (Kg) | 16,530 | 11,930 | 8,430 | 6,240 | 4,950 | 4,110 | 3,480 |
- Home
- Marine Cranes
- Fully Foldable Knuckle Boom Cranes
- HLRM 90 Marine Crane
HLRM 90 Marine Crane
Enquire about this product
Complete the below form, and we will get back to you as soon as possible
-
-
Max dynamic overturning moment 1270 kNm Max dynamic vertical force 299 kN Max slewing torque 191 kNm Mass weight * 7500 kg Slewing angle 360° unilimited Slewing speed 1 rpm Max oil pressure 290 bar Recommended oil flow 130 L/min Oil tank recommended capacity 390 L Standard winch (5 t) 400 kg Rope d-lenght 18/50 mm/m Hoisting speed (2° layer - 100 L/min) 37 m/min Standard winch - kg Rope d-lenght - mm/m Hoisting speed (2° layer) - m/min 1st boom extension time 55 sec 2nd boom extension time 54 sec Telescopic extension time 60 sec Suggested HPU 55 kW * Tolerance +/- 5%; basement and winch not included -
Max dynamic overturning moment 1269 kNm Max dynamic vertical force 297 kN Max slewing torque 202 kNm Mass weight * 8000 kg Slewing angle 360° unilimited Slewing speed 1 rpm Max oil pressure 290 bar Recommended oil flow 130 L/min Oil tank recommended capacity 390 L Standard winch (5 t) 400 kg Stndard rope d-lenght 18/50 mm/m Hoisting speed (2° layer - 100 L/min) 37 m/min Standard winch - kg Standard rope d-lenght - mm/m Hoisting speed (2° layer) - m/min 1st boom extension time 55 sec 2nd boom extension time 54 sec Telescopic extension time 72 sec Suggested HPU 55 kW * Tolerance +/- 5%; basement and winch not included -
Max dynamic overturning moment 1269 kNm Max dynamic vertical force 295 kN Max slewing torque 209 kNm Mass weight * 8500 kg Slewing angle 360° unilimited Slewing speed 1 rpm Max oil pressure 290 bar Recommended oil flow 130 L/min Oil tank recommended capacity 390 L Standard winch (5 t) 400 kg Stndard rope d-lenght 18/50 mm/m Hoisting speed (2° layer - 100 L/min) 37 m/min Standard winch - kg Standard rope d-lenght - mm/m Hoisting speed - m/min 1st boom extension time 55 sec 2nd boom extension time 54 sec Telescopic extension time 86 sec Suggested HPU 55 kW * Tolerance +/- 5%; basement and winch not included -
Max dynamic overturning moment 1270 kNm Max dynamic vertical force 290 kN Max slewing torque 216 kNm Mass weight * 8700 kg Slewing angle 360° unilimited Slewing speed 1 rpm Max oil pressure 280 bar Recommended oil flow 130 L/min Oil tank recommended capacity 390 L Standard winch (5 t) 400 kg Stndard rope d-lenght 18/50 mm/m Hoisting speed (2° layer - 100 L/min) 37 m/min Standard winch - kg Standard rope d-lenght - mm/m Hoisting speed - m/min 1st boom extension time 55 sec 2nd boom extension time 54 sec Telescopic extension time 98 sec Suggested HPU 55 kW * Tolerance +/- 5%; basement and winch not included -
Max dynamic overturning moment 1394 kNm Max dynamic vertical force 299 kN Max slewing torque 128 kNm Mass weight * 8540 kg Slewing angle 360° unilimited Slewing speed (60 L/min) 1 rpm Max oil pressure 290 bar Recommended oil flow 120 L/min Oil tank recommended capacity 400 L Standard winch (5 t) 400 kg Stndard rope d-lenght 18/50 mm/m Hoisting speed (2° layer - 100 L/min) 37(D)-30(T) m/min Standard winch - kg Standard rope d-lenght - mm/m Hoisting speed - m/min 1st boom extension time (100 L/min) 55 sec 2nd boom extension time (100 L/min) 54 sec Telescopic extension time (115 L/min) 90 sec Suggested HPU 55 kW * Tolerance +/- 5%; basement and winch not included
