| No of Ext | 1st Ext | 2nd Ext | 3rd Ext | 4th Ext | 5th Ext | 6th Ext | ||
|---|---|---|---|---|---|---|---|---|

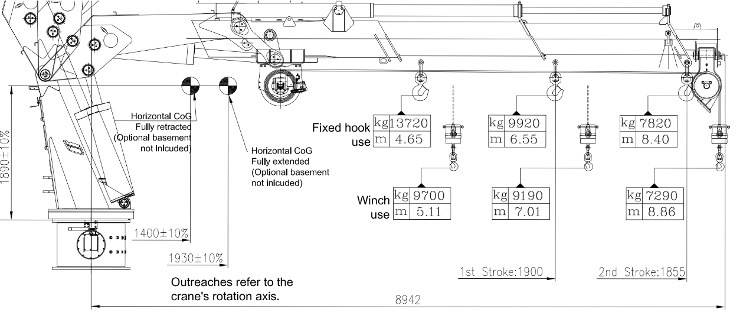

| 2S | Radius (M) | 4.65 | 6.55 | |||||
| SWL (Kg) | 13,720 | 9,920 | ||||||

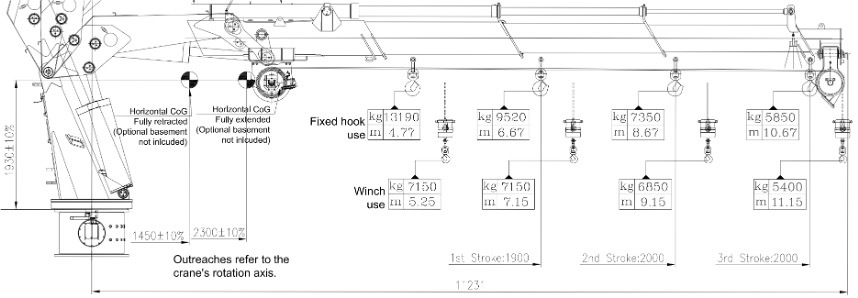

| 3S | Radius (M) | 4.77 | 6.67 | 10.67 | ||||
| SWL (Kg) | 13,190 | 9,520 | 5,850 | |||||

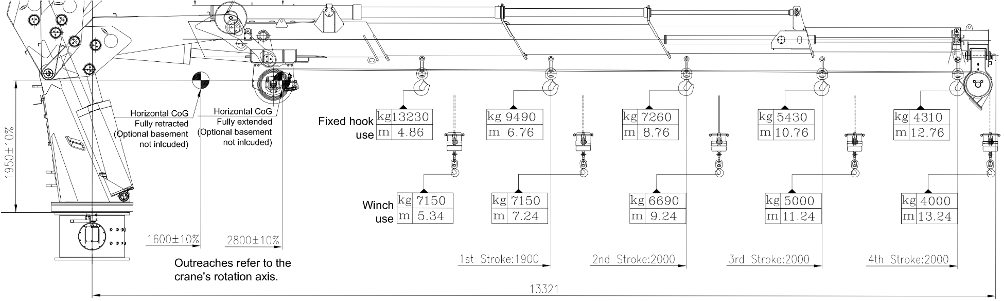

| 4S | Radius (M) | 4.86 | 6.76 | 10.76 | 12.76 | |||
| SWL (Kg) | 13,230 | 9,490 | 5,450 | 4,360 | ||||

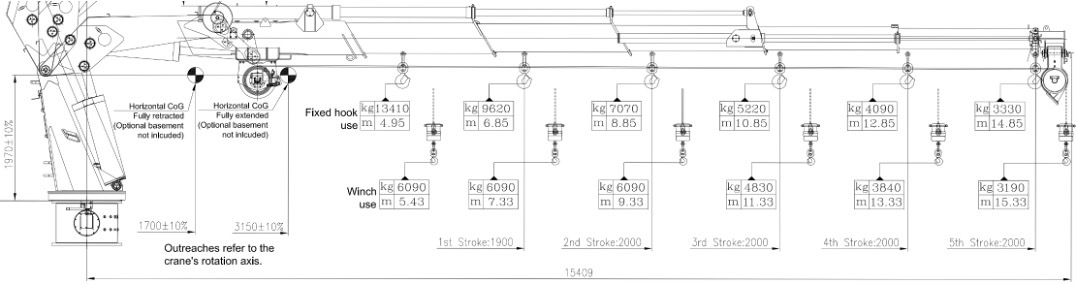

| 5s | Radius (M) | 4.95 | 6.85 | 10.85 | 12.85 | 14.85 | ||
| SWL (Kg) | 13,140 | 9,620 | 5,220 | 4,140 | 3,330 | |||

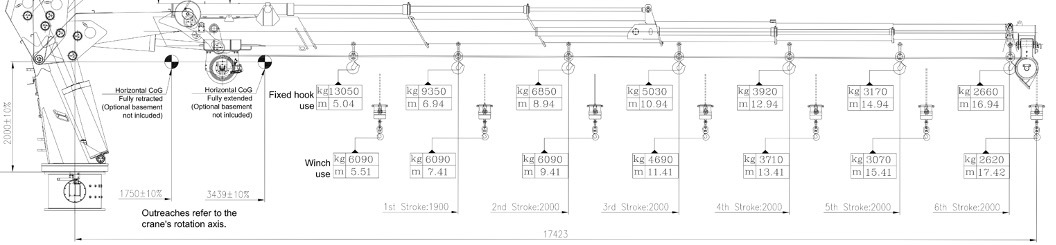

| 6S | Radius (M) | 5.04 | 6.95 | 10.84 | 12.94 | 14.94 | 16.94 | |
| SWL (Kg) | 13,610 | 9,790 | 5,250 | 4,150 | 3,430 | 2,940 | ||

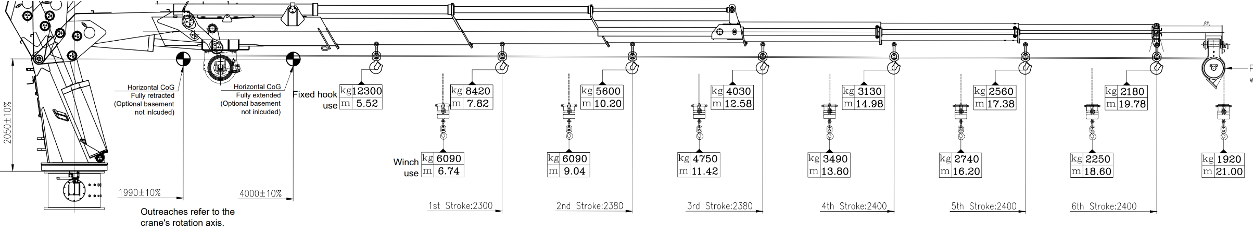

| 6SL | Radius (M) | 5.52 | 7.82 | 10.2 | 12.58 | 14.98 | 17.38 | 19.78 |
| SWL (Kg) | 12,300 | 8,420 | 5,600 | 4,030 | 3,130 | 2,560 | 2,180 |
- Home
- Marine Cranes
- Fully Foldable Knuckle Boom Cranes
- HLRM 65 Marine Crane
HLRM 65 Marine Crane
Enquire about this product
Complete the below form, and we will get back to you as soon as possible
-
-
Max dynamic overturning moment 973 kNm Max dynamic vertical force 234 kN Max slewing torque 96 kNm Mass weight * 6000 kg Slewing angle 360° unilimited Slewing speed 1 rpm Max oil pressure 290 bar Recommended oil flow 100 L/min Oil tank recommended capacity 300 L Standard winch (5 t) 400 kg Standard rope d-lenght 18/60 mm/m Hoisting speed (2° layer - 65 L/min) 24 m/min Standard winch (6 t) 500 kg Standard rope d-lenght 20/60 mm/m Hoisting speed (2° layer - 100 L/min) 24 m/min 1st boom extension time 43 sec 2nd boom extension time 42 sec Telescopic extension time 49 sec Suggested HPU 45 kW * Tolerance +/- 5%; basement and winch not included -
Max dynamic overturning moment 974 kNm Max dynamic vertical force 230 kN Max slewing torque 99 kNm Mass weight * 6100 kg Slewing angle 360° unilimited Slewing speed 1 rpm Max oil pressure 290 bar Recommended oil flow 100 L/min Oil tank recommended capacity 300 L Standard winch (5 t) 400 kg Standard rope d-lenght 18/60 mm/m Hoisting speed (2° layer - 65 L/min) 24 m/min Standard winch (6 t) 500 kg Standard rope d-lenght 20/60 mm/m Hoisting speed (2° layer - 100 L/min) 24 m/min 1st boom extension time 43 sec 2nd boom extension time 42 sec Telescopic extension time 59 sec Suggested HPU 45 kW * Tolerance +/- 5%; basement and winch not included -
Max dynamic overturning moment 1010 kNm Max dynamic vertical force 236 kN Max slewing torque 99 kNm Mass weight * 6500 kg Slewing angle 360° unilimited Slewing speed 1 rpm Max oil pressure 290 bar Recommended oil flow 100 L/min Oil tank recommended capacity 300 L Standard winch (5 t) 400 kg Standard rope d-lenght 18/60 mm/m Hoisting speed (2° layer - 65 L/min) 24 m/min Standard winch (6 t) 500 kg Standard rope d-lenght 20/60 mm/m Hoisting speed (2° layer - 100 L/min) 24 m/min 1st boom extension time 42 sec 2nd boom extension time 43 sec Telescopic extension time 72 sec Suggested HPU 45 kW * Tolerance +/- 5%; basement and winch not included -
Max dynamic overturning moment 1037 kNm Max dynamic vertical force 241 kN Max slewing torque 100 kNm Mass weight * 6700 kg Slewing angle 360° unilimited Slewing speed 1 rpm Max oil pressure 290 bar Recommended oil flow 100 L/min Oil tank recommended capacity 300 L Standard winch (5 t) 400 kg Standard rope d-lenght 18/60 mm/m Hoisting speed (2° layer - 65 L/min) 24 m/min Standard winch (6 t) 500 kg Standard rope d-lenght 20/60 mm/m Hoisting speed (2° layer - 100 L/min) 24 m/min 1st boom extension time 43 sec 2nd boom extension time 42 sec Telescopic extension time 86 sec Suggested HPU 45 kW * Tolerance +/- 5%; basement and winch not included -
Max dynamic overturning moment 1035 kNm Max dynamic vertical force 192 kN Max slewing torque 101 kNm Mass weight * 6900 kg Slewing angle 360° unilimited Slewing speed 1 rpm Max oil pressure 290 bar Recommended oil flow (min) 100 L/min Oil tank recommended capacity 300 L Standard winch (5 t) 400 kg Standard rope d-lenght 18/60 mm/m Hoisting speed (2° layer - 65 L/min) 24 m/min Standard winch (6 t) 500 kg Standard rope d-lenght 20/60 mm/m Hoisting speed (2° layer - 100 L/min) 24 m/min 1st boom extension time 43 sec 2nd boom extension time 42 sec Telescopic extension time 97 sec Suggested HPU 45 kW * Tolerance +/- 5%; basement and winch not included -
Max dynamic overturning moment 1079 kNm Max dynamic vertical force 232 kN Max slewing torque 106 kNm Mass weight * 7100 kg Slewing angle 360° unilimited Slewing speed 1 rpm Max oil pressure 290 bar Recommended oil flow (min) 100 L/min Oil tank recommended capacity 300 L Standard winch (5 t) 400 kg Standard rope d-lenght 18/60 mm/m Hoisting speed (2° layer - 65 L/min) 24 m/min Standard winch (6 t) 500 kg Standard rope d-lenght 20/60 mm/m Hoisting speed (2° layer - 100 L/min) 24 m/min 1st boom extension time 43 sec 2nd boom extension time 42 sec Telescopic extension time 117 sec Suggested HPU 45 kW * Tolerance +/- 5%; basement and winch not included
