| No of Ext | 1st Ext | 2nd Ext | 3rd Ext | 4th Ext | 5th Ext | ||
|---|---|---|---|---|---|---|---|

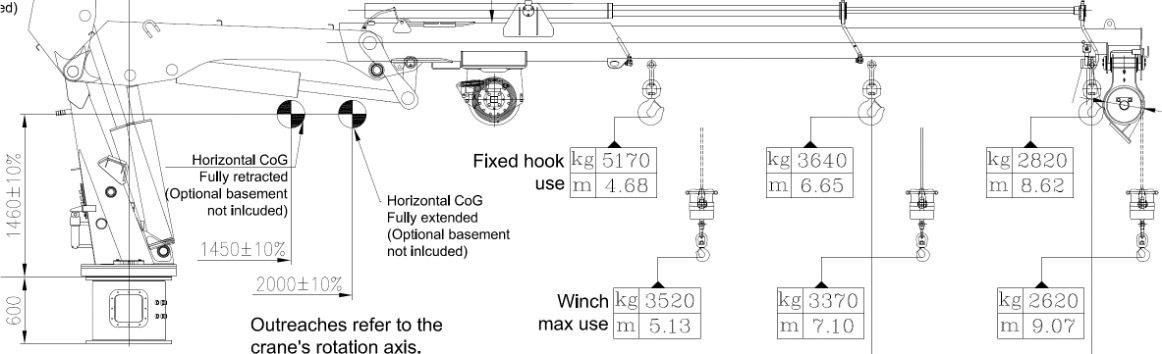

| 2S | Radius (M) | 4,68 | 6.65 | 8.62 | |||
| SWL (Kg) | 5,170 | 3,640 | 2,820 | ||||
| 3S | Radius (M) | 4,81 | 6.76 | 8.73 | 10.58 | ||
| SWL (Kg) | 4,940 | 3,470 | 2,660 | 2,200 | |||
| 4S | Radius (M) | 4,94 | 6,89 | 8.86 | 10.72 | 12.64 | |
| SWL (Kg) | 4,700 | 3,280 | 2,490 | 2,020 | 1,680 | ||
| 5s | Radius (M) | 5.05 | 6.99 | 8.96 | 10.82 | 12.82 | 14.72 |
| SWL (Kg) | 4,520 | 3,100 | 2,320 | 1,850 | 1,450 | 1,160 |
- Home
- Marine Cranes
- Fully Foldable Knuckle Boom Cranes
- HLRM 25 Marine Crane
HLRM 25 Marine Crane
Enquire about this product
Complete the below form, and we will get back to you as soon as possible
-
-
Max dynamic overturning moment 379 kNm Max dynamic vertical force 87 kN Max slewing torque 38 kNm Mass weight * 2700 kg Slewing angle 360° unilimited Slewing speed 1 rpm Max oil pressure 240 bar Recommended oil flow 60 L/min Oil tank recommended capacity 180 L Standard winch (1.5 t) 130 kg Standard rope d-lenght 10/40 mm/m Hoisting speed (2° layer) 32(D)-40(T) m/min Standard winch (2.0 t) 140 kg Standard rope d-lenght 12/40 mm/m Hoisting speed (2° layer) 34 m/min Standard winch (3.0 t) 250 kg Standard rope d-lenght 14/40 mm/m Hoisting speed (2° layer) 19 m/min 1st boom extension time 45 sec 2nd boom extension time 47 sec Telescopic extension time 40 sec Suggested HPU 22 kW * Tolerance +/- 5%; basement and winch not included -
Max dynamic overturning moment 380 kNm Max dynamic vertical force 85 kN Max slewing torque 39 kNm Mass weight * 2850 kg Slewing angle 360° unlilmited Slewing speed 1 rpm Max oil pressure 240 bar Recommended oil flow 60 L/min Oil tank recommended capacity 180 L Standard winch (1.5 t) 130 kg Standard rope d-lenght 10/40 mm/m Hoisting speed (2° layer) 32(D)-40(T) m/min Standard winch (2.0 t) 140 kg Standard rope d-lenght 12/40 mm/m Hoisting speed (2° layer) 34 m/min Standard winch (3.0 t) 250 kg Standard rope d-lenght 14/40 mm/m Hoisting speed (2° layer) 19 m/min 1st boom extension time 45 sec 2nd boom extension time 47 sec Telescopic extension time 66 sec Suggested HPU 22 kW * Tolerance +/- 5%; basement and winch not included -
Max dynamic overturning moment 380 kNm Max dynamic vertical force 84 kN Max slewing torque 40 kNm Mass weight * 3100 kg Slewing angle 360° unlilmited Slewing speed 1 rpm Max oil pressure 240 bar Recommended oil flow 60 L/min Oil tank recommended capacity 180 L Standard winch (1.5 t) 130 kg Standard rope d-lenght 10/40 mm/m Hoisting speed (2° layer) 32(D)-40(T) m/min Standard winch (2.0 t) 140 kg Standard rope d-lenght 12/40 mm/m Hoisting speed (2° layer) 34 m/min Standard winch (3.0 t) 250 kg Standard rope d-lenght 14/40 mm/m Hoisting speed (2° layer) 19 m/min 1st boom extension time 45 sec 2nd boom extension time 47 sec Telescopic extension time 75 sec Suggested HPU 22 kW * Tolerance +/- 5%; basement and winch not included -
Max dynamic overturning moment 376 kNm Max dynamic vertical force 84 kN Max slewing torque 39 kNm Mass weight * 3300 kg Slewing angle 360° unlilmited Slewing speed 1 rpm Max oil pressure 240 bar Recommended oil flow 60 L/min Oil tank recommended capacity 180 L Standard winch (1.5 t) 130 kg Standard rope d-lenght 10/40 mm/m Hoisting speed (2° layer) 32(D)-40(T) m/min Standard winch (2.0 t) 140 kg Standard rope d-lenght 12/40 mm/m Hoisting speed (2° layer) 34 m/min Standard winch (3.0 t) 250 kg Standard rope d-lenght 14/40 mm/m Hoisting speed (2° layer) 19 m/min 1st boom extension time 45 sec 2nd boom extension time 47 sec Telescopic extension time 89 sec Suggested HPU 22 kW * Tolerance +/- 5%; basement and winch not included
